Product Description
The Sinokoko P5H series of linear actuators are high-torque DC motors geared to push or pull a load along the stroke of the actuator. This actuator comes with a built-in potentiometer, allowing your application to monitor the actuator’s position.
The 3547 linear actuator has a stroke length of 300mm, can move at a rate of 24 mm/s and can extert up to 350N of force at lower speeds.
Product Specifications
Motor Properties
|
Motor Type |
DC Motor |
|
Stroke Length |
300 mm |
|
Maximum Speed |
24 mm/s |
|
Peak Power Point |
350 N |
Electrical Properties
|
Rated Voltage |
24 V DC |
|
Potentiometer Impedance |
5 kΩ |
Physical Properties
|
Material |
Aluminium Alloy |
|
Gear Train Material |
Powder Metallurgy |
|
IP Rating |
IP56 |
|
Weight |
1.2 kg |
|
Operating Temperature Min |
-25 °C |
|
Operating Temperature Max |
65 °C |
Motor Controller and Connection
The 3547 DC linear actuator connects to either of the following controllers:

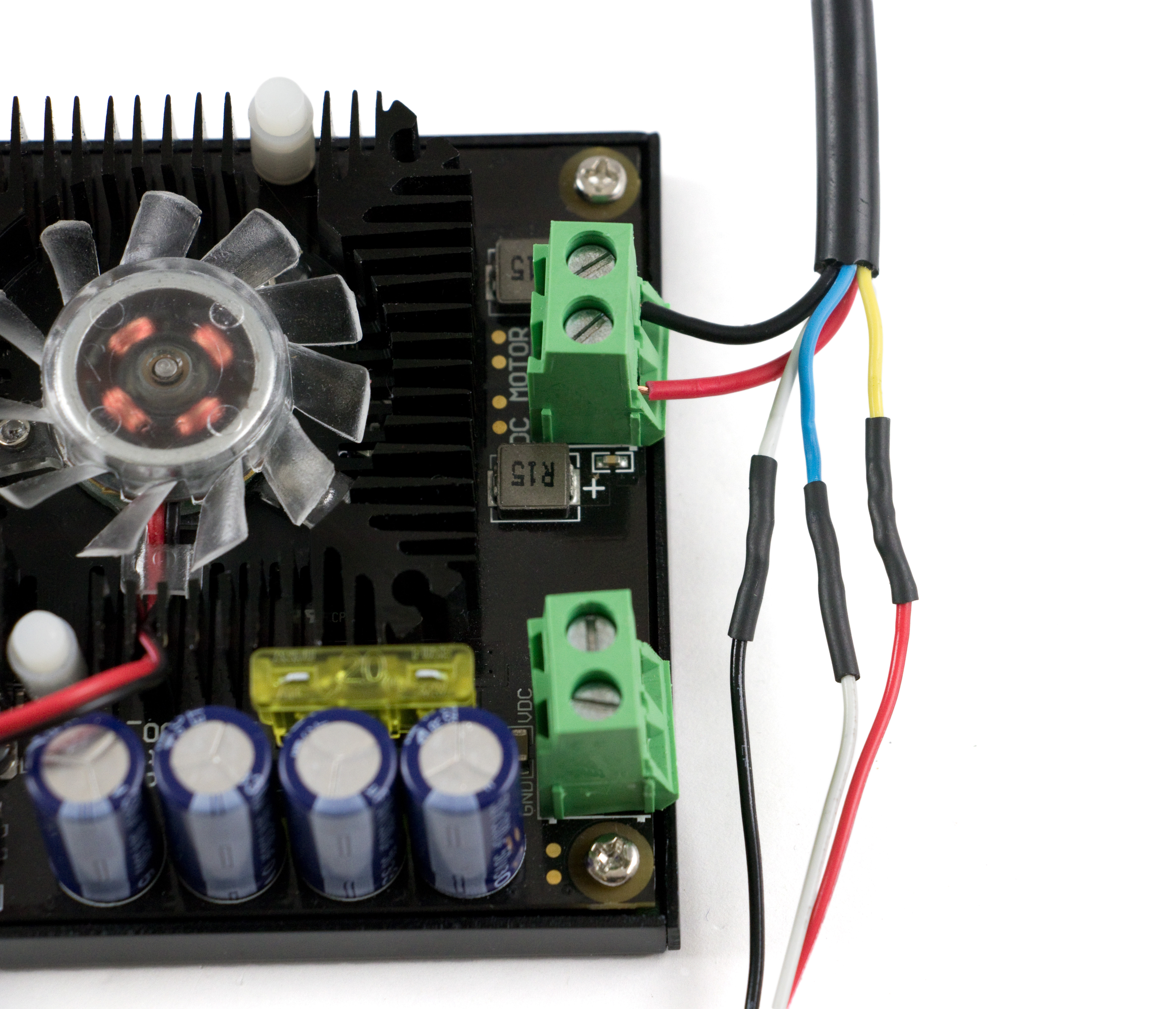

If you decide to use the 1065, you can connect the integrated potentiometer by soldering the wires to a sensor cable and connecting it to one of the board’s analog inputs. If you decide to use the 1064, you’ll also need a device with an analog input to read the potentiometer.
|
Wire Color |
Function |
|
White |
Potentiometer Ground |
|
Blue |
Potentiometer Wiper |
|
Red |
Actuator Motor Power |
|
Black |
Actuator Motor Power |
|
Yellow |
Potentiometer Power |
Resources
