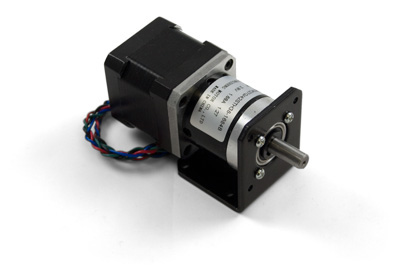

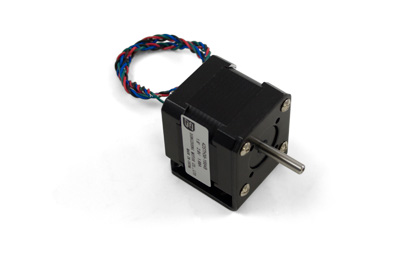

This coated steel mounting bracket provides a simple means of attaching a NEMA-17 sized motor to a flat surface. It has two sets of mounting holes, so it can be attached to 36mm planetary gearboxes or mounted directly to the motor. For a list of compatible motors, see the “Compatible Products” tab.
Note: Nuts and screws not included.
| Physical Properties | |
|---|---|
| Mounting Plate Size | NEMA – 17 |
| Material | Mild Steel (Coated) |
This mounting bracket can fit on any motor or gearbox that uses the NEMA-17 mounting pattern. Here’s a list of stepper motors it fits on:
| Product | Physical Properties | Motor Properties | Electrical Properties | Gearbox Properties | ||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Mounting Plate Size | Shaft Diameter | Weight | Step Angle | Rated Torque | Maximum Speed (w/1067 Motor Controller) | Recommended Voltage | Gear Ratio |
| 3304_0 | NEMA – 17 | 5 mm | 171 g | 3 3⁄4?° | 590 g?·cm | 4105 RPM | 12 V DC | ?€” |
| 3324_0 | NEMA – 17 | 5 mm | 289 g | 1.8?° | 3.3 kg?·cm | 4130 RPM | 12 V DC | ?€” |
| 3325_0 | NEMA – 17 | 8 mm | 457 g | 0.35?° | 18 kg?·cm | 904 RPM | 12 V DC | 5 2⁄11 : 1 |
| 3326_0 | NEMA – 17 | 8 mm | 502 g | 0.13?° | 30 kg?·cm | 295 RPM | 12 V DC | 13 212⁄289 : 1 |
| 3327_0 | NEMA – 17 | 8 mm | 503 g | 0.067?° | 30 kg?·cm | 174 RPM | 12 V DC | 26 103⁄121 : 1 |
| 3328_0 | NEMA – 17 | 8 mm | 564 g | 0.035?° | 48 kg?·cm | 63 RPM | 12 V DC | 50 4397⁄4913 : 1 |
| 3329_0 | NEMA – 17 | 8 mm | 564 g | 0.018?° | 48 kg?·cm | 34 RPM | 12 V DC | 99 1044⁄2057 : 1 |
| 3340_0 | NEMA – 17 | 5 mm | 288 g | 0.9?° | 3.3 kg?·cm | 2344 RPM | 12 V DC | ?€” |
